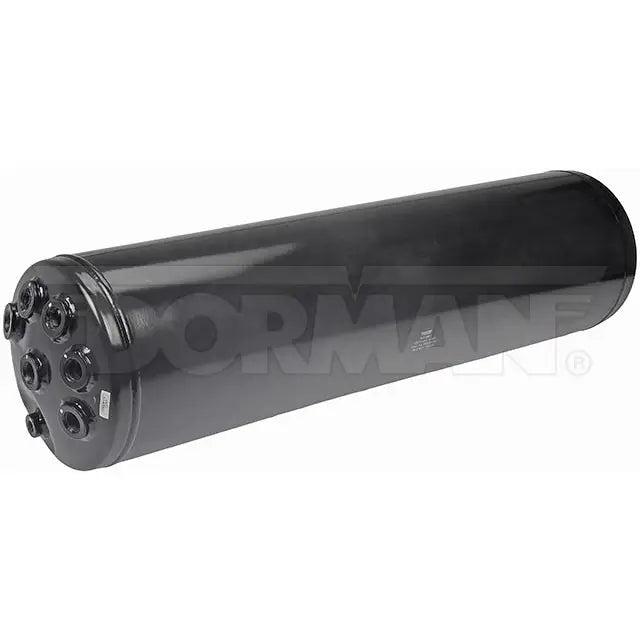

924-5811- Air Brake Reservoir
924-5811- Air Brake Reservoir
DESCRIPTION
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.
Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
Excellent value - original equipment quality at a lower cost
APPLICATIONS:
IC 2014-05, IC Corporation 2020-03, 2001-00, International 2019-90
SPECIFICATIONS:
| Air Tank Type | Tractor |
|---|---|
| Capacity | 30 Lt |
| Color | Black |
| Diameter | 8.5 in |
| Diameter B | 8.6 in |
| Length | 33 in |
| Length (A) | 33.3 in |
| Material | Carbon Steel |
| Material Thickness | 0.13 in |
| Maximum Working Pressure | 150 PSI |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 0 |
| Mounting Type | Strap On |
| Number of Chambers | 2 |
| Package Contents | 1 Air Tank |
| Part Number | 924-5811 |
| Part Type | Air Brake Reservoir |
| Port Quantity | 10 |
| Port Thread Diameter | M22; M22; M22; M22; M22; M22; M22; M22; 1/4 in; 1/4 in |
| Port Thread Pitch | 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm |
| Tank Chamber Quantity | 2 |
| Thread Size | 22 m; 22 m; 22 m; 22 m; 22 m; 22 m; 22 m; 22 m; 1/4 in; 1/4 in |
| Threaded Mounting Bracket Included | No |
| Valve Included | No |
| Volume | 30 L |
CROSS REFERENCE:3829915C1
