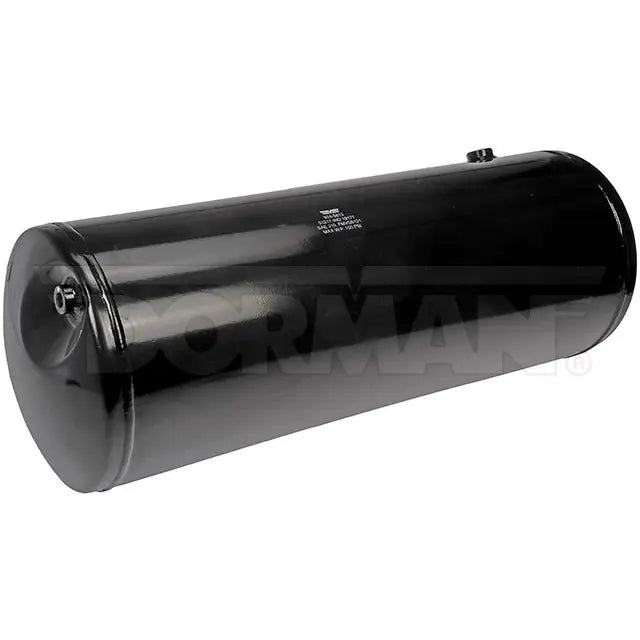

924-5813- Air Brake Reservoir
924-5813- Air Brake Reservoir
DESCRIPTION
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.
Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
Excellent value - original equipment quality at a lower cost
APPLICATIONS:
International 2019-96
SPECIFICATIONS:
| Air Tank Type | Tractor |
|---|---|
| Capacity | 34 Lt |
| Color | Black |
| Diameter | 10 in |
| Diameter B | 10 in |
| Length | 28.5 in |
| Length (A) | 28.4 in |
| Material | Carbon Steel |
| Material Thickness | 0.13 in |
| Maximum Working Pressure | 150 PSI |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 0 |
| Mounting Type | Strap On |
| Package Contents | 1 Air Tank |
| Part Number | 924-5813 |
| Part Type | Air Brake Reservoir |
| Port Quantity | 5 |
| Port Thread Diameter | 1/4 in; 1/2 in; 1/2 in; 1/2 in; 1/2 in |
| Tank Chamber Quantity | 1 |
| Thread Size | 1/2 in; 1/2 in; 1/2 in; 1/2 in; 1/2 in; 1/2 in; 1/4 in; 1/4 in |
| Threaded Mounting Bracket Included | No |
| Valve Included | No |
| Volume | 34 L |
CROSS REFERENCE: 475830C3
