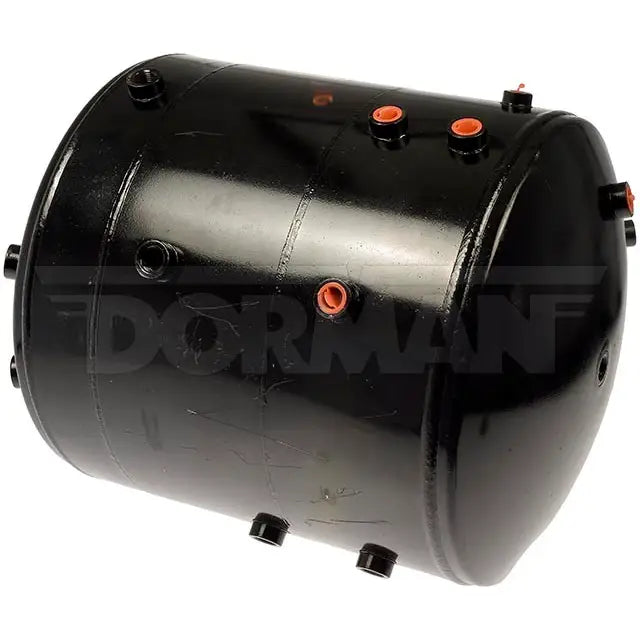

924-5815- Air Tank Reservoir
924-5815- Air Tank Reservoir
DESCRIPTION
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.
Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
Excellent value - original equipment quality at a lower cost
APPLICATIONS:
IC Corporation 2007-04 & 2002, International 2019-15, 2005-95, 1993, 1991-90
SPECIFICATIONS:
| Air Tank Type | Tractor |
|---|---|
| Capacity | 60 Lt |
| Color | Black |
| Diameter | 16 in |
| Diameter B | 16 in |
| Length | 21 in |
| Length (A) | 21 in |
| Material | Steel |
| Material Thickness | 0.11 in |
| Maximum Working Pressure | 150 PSI |
| Mounting Bracket Included | No |
| Mounting Type | Strap On |
| Number of Chambers | 2 |
| Package Contents | 1 Air Tank |
| Part Number | 924-5815 |
| Part Type | Air Brake Reservoir |
| Port Quantity | 20 |
| Port Thread Diameter | 1/2 in; 1/4 in |
| Port Thread Pitch | 0 |
| Tank Chamber Quantity | 2 |
| Thread Size | 22 m; 22 m; 22 m; 1/4 in |
| Threaded Mounting Bracket Included | No |
| Valve Included | No |
| Volume | 60 L |
CROSS REFERENCE:1657571C4N
