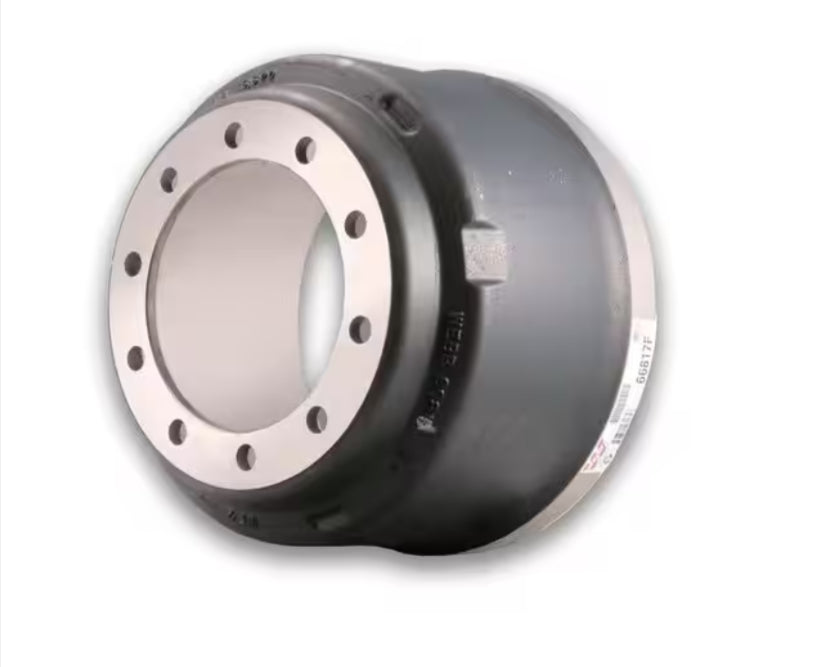

Automann brake drum, 16.500-inch diameter and 8.625-inch width, with detailed metal surface finish and mounting holes.

151.68606 - Brake Drum 16.500in X 8.625in

Description

151.68606 - Brake Drum 16.500in X 8.625in

SPECIFICATIONS

Brake Surface Dia (A): 16.500
Overall Depth (B): 12.250"
Brake Surface Flat (C): 9.52
Pilot Dia (D): 9.440
Bolt Circle Dia (E): 11.250
Bolt Holes (F) 10 @ 0.813

CROSS REFERENCES
MWW668170/ 03122513002/ 66817/ 66817F
