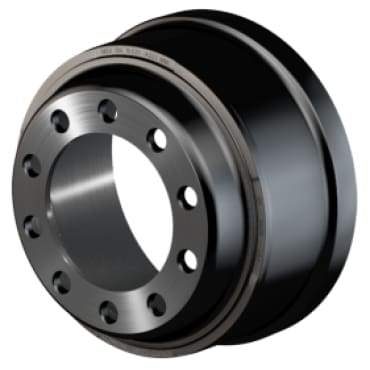

HD-10- Brake Drum-16.5 Diameter/7 Width/10.5 Pilot
Brake Drum
16.5 In. Brake Surface Diameter, 7.63 In. Wide, 8.69 In. Depth
5/6 Bolt Holes, 0.78 In. Bolt Hole Size, 12.7 In. Circle Diameter, 10.5 In. Pilot Diameter,
100 Drum Weight, Inboard Drum Mount
CROSS REFERENCES:
3122009002 / 62997 / X61196 / 2997D / 123430
HD10 / 5289013
