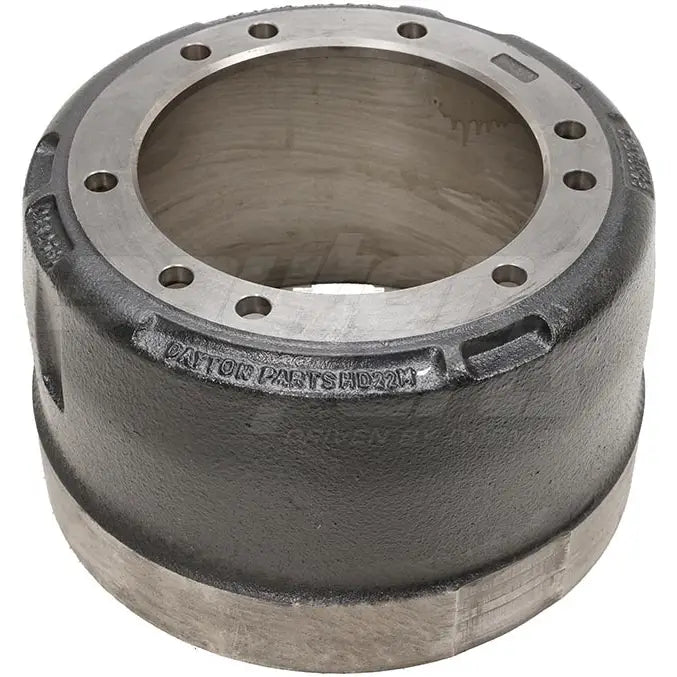

Dayton HD22 air brake drum showing metal surface and ventilation holes for vehicle braking system.

HD22- Brake Drum- Air

Description

HD22- Brake Drum- Air

SPECIFICATIONS
Brake Surface Diameter (A): 12.25"
Drum Mount: Outboard
Pilot Diameter (B): 8.78"
Bolt Circle Diameter (C): 10.00"
Bolt Holes: 6
Bolt Hole Size (E): .66"
Overall Height (F): 9.07"
Brake Surface Width (G): 8.00"
Machine Balanced: NO

CROSS REFERENCE: 151.27501
