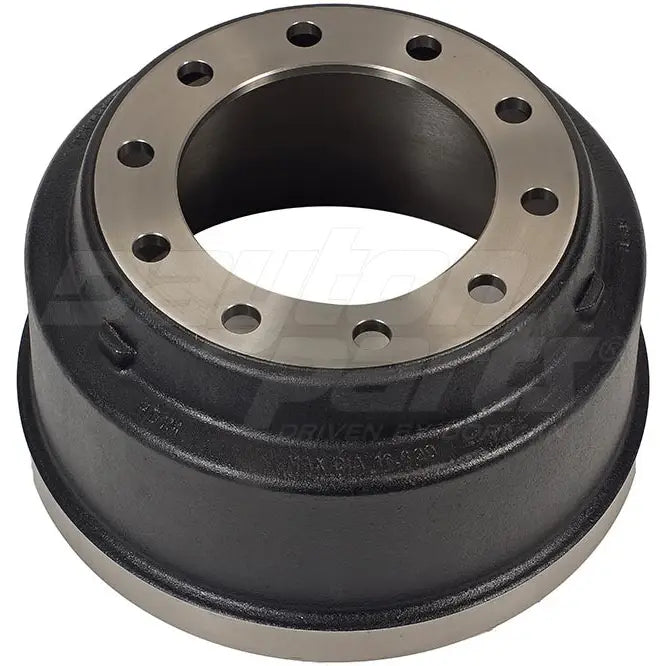

Dayton HD33M air brake drum showing a metal circular brake component with mounting holes for vehicle braking systems.

HD33M- Brake Drum- Air

$ 184.57
HD33M- Brake Drum- Air

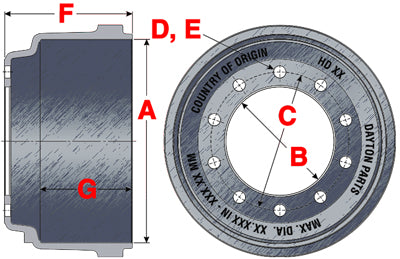

SPECIFICATIONS
Brake Surface Diameter (A): 16.50"
Drum Mount: Outboard
Pilot Diameter (B): 8.78"
Bolt Circle Diameter (C): 11.25"
Bolt Holes: 10
Bolt Hole Size (E): 1.00"
Overall Height (F): 9.37"
Brake Surface Width (G): 5.45"
Machine Balanced: YES
