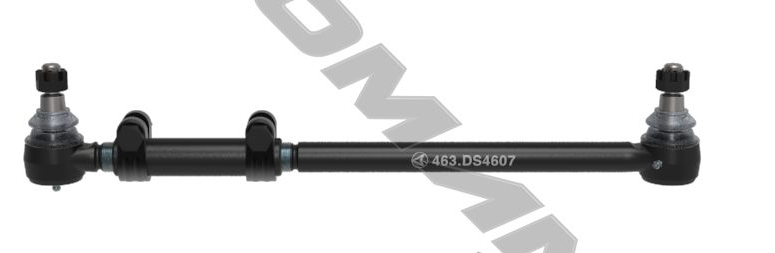

463.DS4607 - Drag Link 22.250in C to C Freightliner
463.DS4607 - Drag Link 22.250in C to C Freightliner
SPECIFICATIONS
Length: 22.250”
Shaft Thread: 1.0"-18 (L&R)
Shaft Side Thread (E): 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B): .762”
Taper Pin Major Dia.-1 (C): .874”
Taper Pin Length-1 (D): 0.898"
Taper Pin Thread-1 (E): 5/8-18"
CROSS REFERENCE L18VT8026A11
