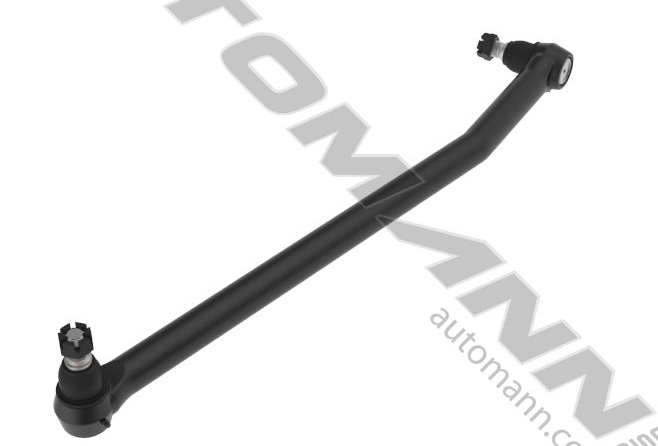

463.DS4619B - Drag Link 31.000in C to C Freightliner

463.DS4619B - Drag Link 31.000in C to C Freightliner

SPECIFICATIONS
Length: 31.470”
Shaft Diameter: 1.654"
Shaft Side Thread (E): 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B): 1.075”
Taper Pin Major Dia.-1 (C): 1.220”
Taper Pin Length-1 (D): 1.161"
Taper Pin Thread-1 (E): 7/8-14"

CROSS REFERENCE 1412479000/ 1417273000/ A1412479000/ DS300002/ L24VU8119A11/ L24VU8119B11
