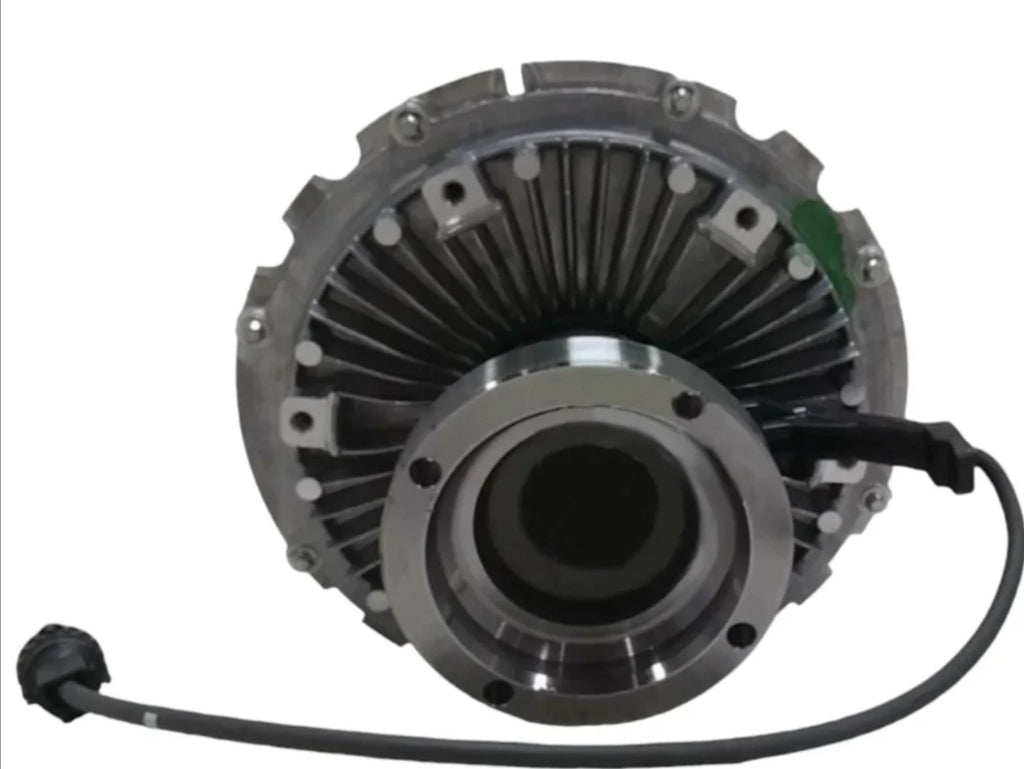

810.62211-Fan Clutch Electric Mack
| Applications | Mack |
| Connector Type | 5 pin |
| Make | Mack |
| Bolt Hole Size | 0.354" |
| Bolt Circle Diameter | 4.409" |
| Bolt Hole Count | 4 |
| Pilot Hole Size | 3.700" |
| Clutch Diameter | 10.340" |
| Fan Blade Bolt C to C | 7.87" |
| Fan Blade Pilot Hole | 7.08" |
| Overall Length | 6.220" |
| Recommended Fan Blade Size | 26.700" |
| Model | CTP, MP7, MD11, MD13 |
| Replaces | Mack (43MH57M, 85111563, 85111564) |
CROSS REFERENCE: 376791211/ 376791591/ 43MH57M/ 85111563/ 85111564
