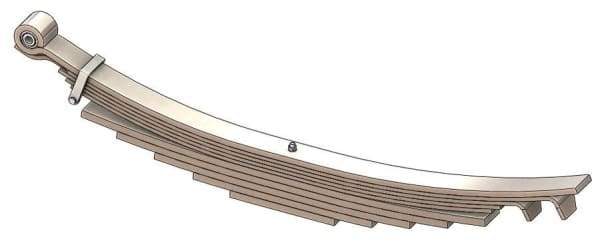

22-845-Chevy/GMC Spring

Rear Spring

DIMENSIONS:
Width: 3 in.
Short End (A) Dimension = 29-13/16 in.
Long End (B) Dimension = 33-3/8 in.
Leaves: 5/5
Leaf Arrangement: 1/699
4/447
5/812
A End - RB-191
B End - HK-2-3
Arch: 5-1/2 in.
Capacity: 10250 lbs.

APPLICATIONS:
Kodiak / Topkick
C Series
FSR / FTR / FVR amp; FXR
HTR / HVR amp; HXR

CROSS REFERENCES:
15641034 / 15641034
