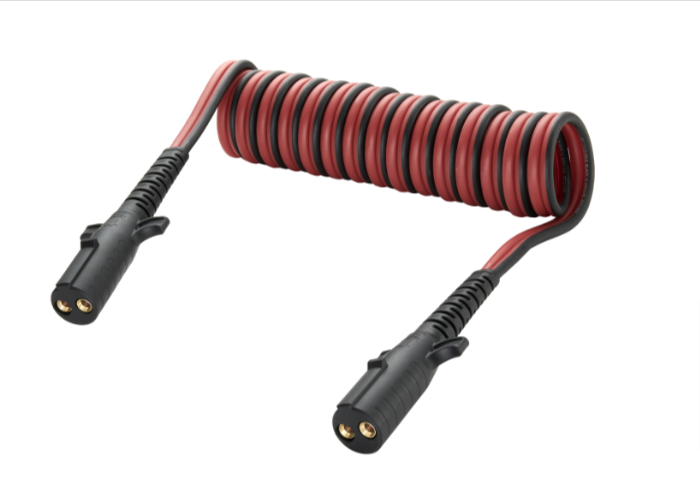

2HCM52- 15' Charging Coil 2-Pole Horizontal
2HCM52- 15' Charging Coil 2-Pole Horizontal
DESCRIPTION
Used for charging trailer liftgate batteries and other high current auxiliary power applications
• Solid, overmolded plugs encapsulate the terminals and wires in order to seal out water and other contaminants
• 4 gauge, high strand count copper conductors
• Advanced ArticFlex™ cable jacket formula allows for use in extreme cold temperatures as low as -85ºF (-65ºC)
• Maximum current carrying capacity of 200 amps for 12V intermittent use and 100 amps for continuous 12V use
• SAE J3082 compliant
• Compatible with 670-22 and 670P-22W mating sockets
• Recessed positive terminal enhances safety for operators and can protect the primary trailer wiring
• Machine crimped, solid brass terminals with retention springs for excellent conductivity and reliability
SPECIFICATIONS
12"x12" LEADS, 4GA OVERMOLDED PLUGS
