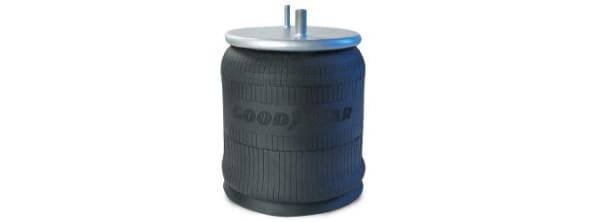

9780-Air Spring-Rolling Lobe

9780 Air Spring - Rolling Lobe
Piston # 9527
Piston Type - Composite
Top Plate Holes/Studs - Qty = 2
Bottom Plate Holes/Studs - Qty = 1
Top Plate Diameter = 9.00"
Bottom Plate Diameter = 10.62"
Bellows # 1T15ZR-6
Collapsed Height = 8.60"

CROSS REFERENCES:
1613810000 / 1614377000 / 6813200017 / 1R12303 / 1R12303 / 1R12603 / 1R12189 / 1R12186 / AS8382 / AB1DK23K9780 / EFS9780 / AS9780 / W013589780 / TR9780 / AB1DF23-9780
