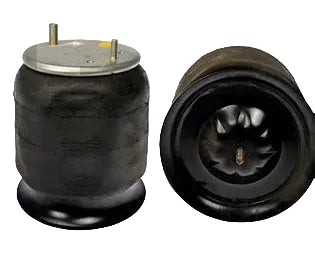

AB1DK20D-9379-Air Spring Rolling Lobe

AB1DK20D-9379-Air Spring Rolling Lobe

Specifications:
Brand: Automann Phoenix
Automann Bellows#: 1DK20D
Firestone Bellows#: N/A
Goodyear Bellows#: 566-22-3-021
Contitech Bellows#: 9 9-12
Triangle Bellows#: 6368
Load (Lbs) @80 PSI: 4820
Load (Lbs) @100 PSI: 6060
Natural Freq. (CPM): 80
Design Height (In): 8
Bottom Plate Type: Plastic
Top Plate Hole/Stud Qty: 2
Top Plate Dia. (A): 9
Top Plate C to C Dia. (B): 5.5
Bottom Plate Hole/Stud Qty: 2
Bottom Plate Dia. (C): 9.53
Bottom Plate C to C Dia. (D): 4.12
Bottom Part #: BS08625
Bottom Plate Alignment: 45 Degree
Bumper: Yes
Bracket: N/A
Min. Height: 5.3
Max. Height: 14.4
Max. Dia.: 11.4

CROSS REFERENCES:
Firestone: 9379
Goodyear: 1R12178/ 1R12-178
IHC: 1660694C1
Load Guard: SC2110
Neway: 57009379
