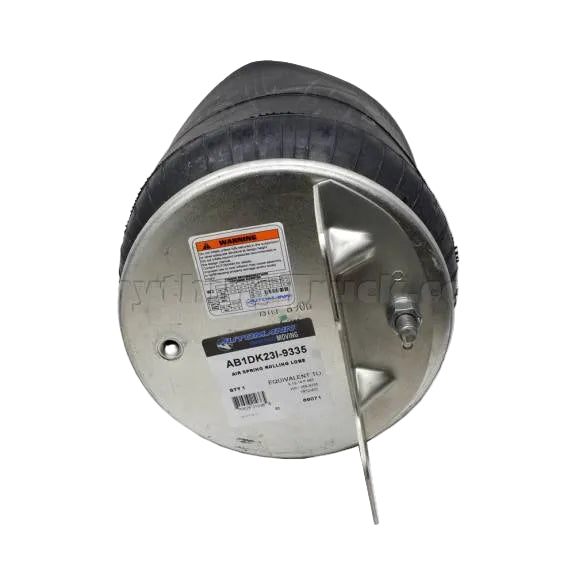

AB1DK23I-9335-Air Spring Rolling Lobe
AB1DK23I-9335-Air Spring Rolling Lobe
Specifications:
Brand: Automann Phoenix
Automann Bellows#: 1DK23I
Firestone Bellows#: 1T15M-4/1T15VP-4
Goodyear Bellows#: 566-24-3-076/566-26-3-053
Contitech Bellows#: 9 10-13.5/9 10-14
Triangle Bellows#: 6362/85/88
Load (Lbs) @80 PSI: 5710
Load (Lbs) @100 PSI: 7160
Natural Freq. (CPM): 72
Design Height (In): 13
Bottom Plate Type: Plastic
Top Plate Hole/Stud Qty: 2
Top Plate Dia. (A): 9
Top Plate C to C Dia. (B): 6.2
Bottom Plate Hole/Stud Qty: 1
Bottom Plate Dia. (C): 9.53
Bottom Plate C to C Dia. (D): 2.25
Bottom Part #: BS08127
Bottom Plate Alignment: Parallel
Bumper: Yes
Bracket: AB9373P
Min. Height: 7.4
Max. Height: 19.5
Max. Dia.: 12.6
CROSS REFERENCES:
Firestone : 9284/ 9335
Goodyear: 1R12620/ 1R12-620
Hendrickson: 56917001/ 56917-001 / 56917002 / 56917-002
