TS4162625- Trailer Axle Nut - Nick's Truck Parts

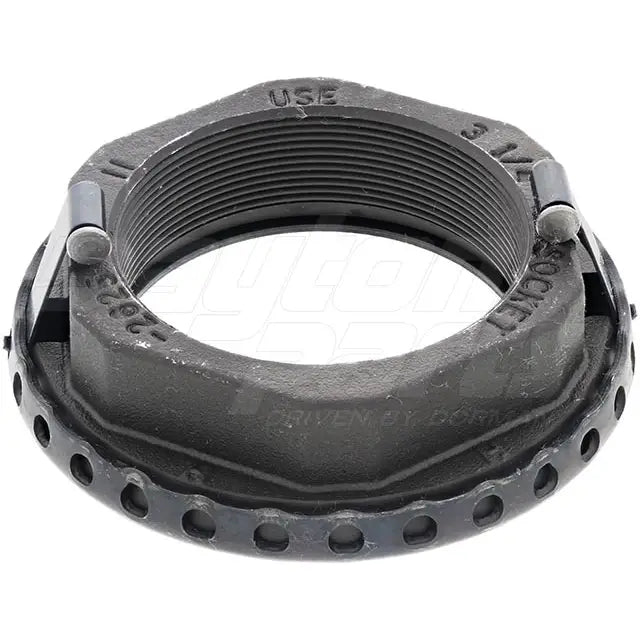

TS4162625- Trailer Axle Nut

$ 39.88

TS4162625- Trailer Axle Nut

The first true single piece nut design delivers accurate adjustments within .001" which will extend the wheel bearing and seal service life. Adjustments are made in half the time others require. The design is superior to the three piece style jamming nut system and two piece models that require locking keepers. This nut requires only one installation tool, a six point socket & torque wrench. Available for trailer, drive and steer axles with the standard "D" flat or slotted spindles

Axle Type: Trailer Axle
Thread: 2-5/8"-16
W.A.F: 3.750"-8
Thickness: 1.015"

Dana Spicer Trailer Axles: D-20, D-21, D22, DD-21, DD-22, K-21, K-22, K-25, K-30
Eaton Trailer Axles: C, C2, CD, CD2, CE, ESA-225J, EST, EST-225J, EST-230J, ETA 230C, ETA 225D, ETA 225J, H23L, H25R, HCE, HJ, HJE, J, JE, JH, LA-15, T-18 C, 20L-77, 22L, 22R, 23L, 23R, 25R
Hendrickson Trailer Axles: HN
Ingersoll Trailer Axles: A22T
Meritor Trailer Axles: RL Series, RQ Series, TK Series, TKL Series, TKLD Series, TL Series, TLD Series, TN Series, TND Series, TQ Series, TQC Series, TQD Series
Standard Forge Trailer Axles: A25, A26, 17,000lb and 18,000lb Trade
Meritor Drive Axles: F Series, H Series

CROSS REFERENCE: 447-4743 / AX12-3480-2625
