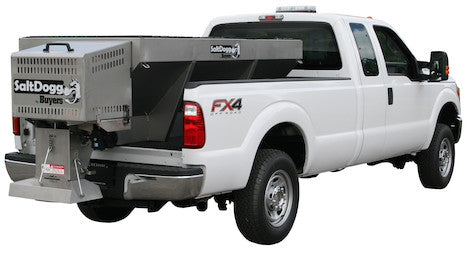

1400202SS-Buyers SaltDogg SPREADER 7FT 1.8 CU YD 304SST GAS CHAIN STD CHUTE
1400202SS-Buyers SaltDogg SPREADER 7FT 1.8 CU YD 304SST GAS CHAIN STD CHUTE
DESCRIPTION
Product Common Use: Residential & Commercial Spreading, Property Maintenance, Parking Lots, Driveways
DESCRIPTION
Capacity: 1.80 yd
Chute Primary Material: 304 Stainless Steel
ChuteStandardAdjustableExtended: Standard
Controller Type: In-Cab Throttle/Choke
Drive Motor Horse Power: 10.50 HP
Feed Mechanism: Conveyor chain
Feed Mechanism2: 12 in Pintle Chain Conveyor
Gearbox Ratio: 20:1
Hopper Material: 304 Stainless Steel
Number of Motors: 1
Overall Length: 103.70
Overall Width (at top) 47.00
Spinner Diameter: 12.00"
Spinner Material: Polyurethane
Spreading Width Range: 2 to 30'
System Voltage: 12 vdc
Top Screen: YES
Vibrator Included?: NO
Works With Bagged #1 Rock Salt: Yes
Works with Bulk Salt: Yes
Works with Bulk Sand: Yes
Works with Salt/Sand Mix: Yes
Hopper Length:(in) 84.00
Hopper Width(in): 47.00
Overall Height: 32.10"
MANUAL INSTRUCTION: https://pimimages.buyersproducts.com/products/Documents/3008005_C.pdf
Wiring Diagram for SaltDogg Gas Spreaders: https://pimimages.buyersproducts.com/products/Documents/wiring_diagram_gas_spreader.pdf
DESCRIPTION
- Buyers Products SaltDogg Gas Stainless Hopper Spreader with Pintle Chain Conveyor gives contractors and businesses a gas-powered spreader ready for commercial applications using bulk salt, bulk sand, or a 50/50 salt/sand mix. Its 10 ft hopper fits an extended bed 1 ton truck. With electric start and in-cab throttle control, the spreader combines the power of a gas engine with modern spreader conveniences.
- The spreader comes equipped with a 12V electric clutch and in-cab, 3 position momentary switch and throttle. It's powered by a 10-1/2 HP Briggs and Stratton Intek industrial/commercial engine with a battery for electric start. A heavy duty drive shaft and 1-1/8 in. sealed bearings are designed for long life. The high-torque conveyor gearbox has a 20:1 ratio with a 1 in. input shaft and 1-1/8 in. output shaft on tapered roller bearings to provide extra power on start up.
- The hopper, which comes with a top screen and fully welded frame, is made from high quality 304 stainless steel for long lasting corrosion protection. It's equipped with a steel pintle chain conveyor and features a stainless steel inverted V to reduce stress on the drive line and improve flow. The high-flow conveyor is 12 in. wide with a stainless steel floor. An adjustable feedgate with friction lock offers additional material flow control.
- A 12 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Adjustable baffles allow you to adjust the spread pattern to match your use.
- The SaltDogg Gas Stainless Hopper Spreader with Pintle Chain Conveyor is comparable to Swenson® PV and Henderson® FSP.
