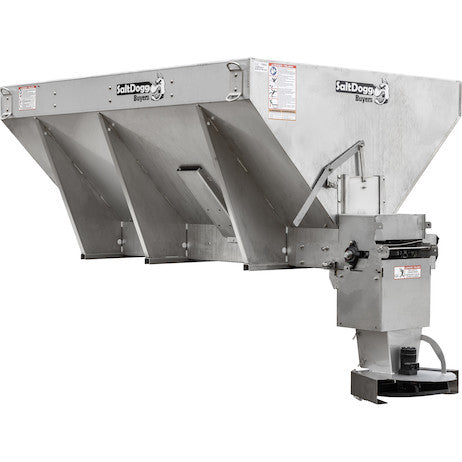

14708F382211- SaltDogg® 8 Ft. X 38 In. Hydraulic Chain 304 Stainless Steel Spreader
DESCRIPTION:
Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader is ready for use with your truck's existing central hydraulic system.
- Designed for dump bodies and flatbeds with a 13,000 to 19,500 lb GVW (gross vehicle weight).
- Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 2.5 to 5 cubic yards.
- Hydraulic powered drive with two motors for conveyor and spinner operation.
- Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix.
- Hydraulic spreader controls sold separately with variety of options available.
- 18 in. poly spinner broadcasts up to 30 ft
- Versatile 14-1/2 in. chain conveyor drive.
- Three chute baffles allow you to adjust the spread pattern to your use.
- High quality, welded 304 stainless steel construction for optimum corrosion resistance.
- Stainless steel inverted V reduces stress on the drive line and improves flow.
- Two top screens with 1/4 in. bars included.
- Made in the USA.
Specifications:
| Capacity (Cu. yd.) |
2.50 yd³ |
Chute |
Adjustable Height |
| Chute Primary Material |
304 Stainless Steel |
Controller Type |
Not Included |
| Drive Type |
Hydraulic |
Feed Mechanism |
Conveyor Chain |
| Feed Mechanism2 |
14 1/2 in. Pintle Chain with 1/4in. Bars |
Gearbox Ratio |
Direct |
| Hopper Length (in.) |
96.00" |
Hopper Material |
304 Stainless Steel |
| Hopper Width (in.) |
58.00" |
Number of Motors |
2 |
| Overall Height (in.) |
38.00" |
Overall Length |
116.00" |
| Overall Width (at top) |
58.00" |
Spinner Diameter |
18.00" |
| Spinner Material |
Polyurethane |
Spreading Width Range |
2 to 40' |
| Top Screen |
Yes |
Trough Material |
304 Stainless Steel |
| Vibrator Included? |
No |
Works with Bagged #1 Rock Salt |
Yes |
| Works with Bulk Salt |
Yes |
Works with Bulk Sand |
Yes |
| Works with Salt / Sand Mix |
Yes |
Shipping Weight |
1498.39 lb |
|
|
