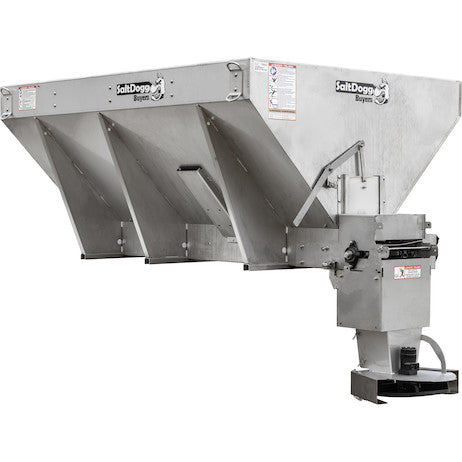

14710F462211- SaltDogg® 10 Ft. X 46 In. Hydraulic Chain 304 Stainless Steel Spreader
14710F462211- SaltDogg® 10 Ft. X 46 In. Hydraulic Chain 304 Stainless Steel Spreader
DESCRIPTION:
Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader is ready for use with your truck's existing central hydraulic system.
- Designed for dump bodies and flatbeds with a 13,000 to 19,500 lb GVW (gross vehicle weight).
- Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 2.5 to 5 cubic yards.
- Hydraulic powered drive with two motors for conveyor and spinner operation.
- Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix.
- Hydraulic spreader controls sold separately with variety of options available.
- 18 in. poly spinner broadcasts up to 30 ft
- Versatile 14-1/2 in. chain conveyor drive.
- Three chute baffles allow you to adjust the spread pattern to your use.
- High quality, welded 304 stainless steel construction for optimum corrosion resistance.
- Stainless steel inverted V reduces stress on the drive line and improves flow.
- Two top screens with 1/4 in. bars included.
- Made in the USA.
Specifications:
| Capacity (Cu. yd.) | 4.50 yd³ | Chute | Adjustable Height |
| Chute Primary Material | 304 Stainless Steel | Controller Type | Not Included |
| Drive Type | Hydraulic | Feed Mechanism | Conveyor Chain |
| Feed Mechanism2 | 14 1/2 in. Pintle Chain with 1/4in. Bars | Gearbox Ratio | 20:1 |
| Hopper Length (in.) | 120.00" | Hopper Material | 304 Stainless Steel |
| Hopper Width (in.) | 70.00" | Number of Motors | 2 |
| Overall Height (in.) | 46.00" | Overall Length | 140.00" |
| Overall Width (at top) | 70.00" | Spinner Diameter | 18.00" |
| Spinner Material | Polyurethane | Spreading Width Range | 2 to 40' |
| Top Screen | Yes | Trough Material | 304 Stainless Steel |
| Vibrator Included? | No | Works with Bagged #1 Rock Salt | Yes |
| Works with Bulk Salt | Yes | Works with Bulk Sand | Yes |
| Works with Salt / Sand Mix | Yes |
