ES9601R-Tie Rod with Drag Link Ends, (product_type), (product_vendor) - Nick's Truck Parts

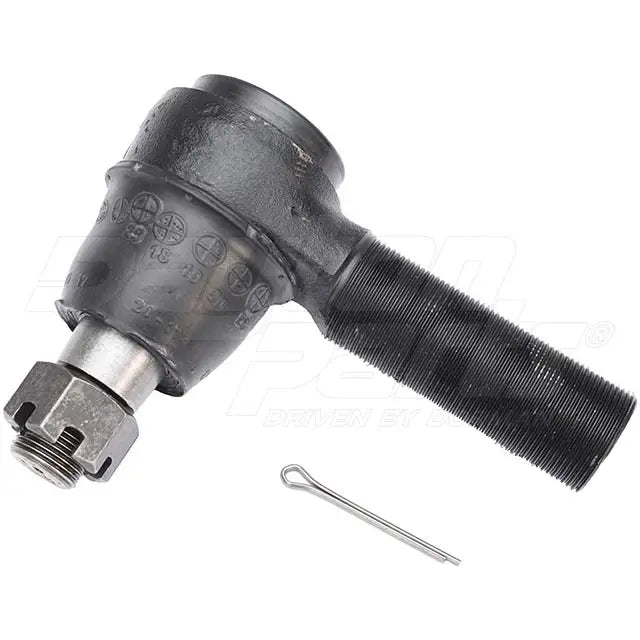

ES9601R-Tie Rod with Drag Link Ends

$ 68.35

TYPE 1, 4.72 C-E, M30X1.5 ROD THREAD, M20X1.5 STUD THREAD

Rod OD (A) M30
Type 1
Thread Pitch & Direction 1.5 (RH)
Center to End (B) 4.800”
Height of Taper (C) 2.618”
Taper Minor Dia. (D) 0.940”
Taper Major Dia. (E) 1.126”
Taper Length (F) 1.100”
Stud Thread (G) M20-1.5



APPLICATIONS:
VOLVO - AC SERIES
VOLVO - ACL SERIES
VOLVO - WG SERIES
VOLVO - XPEDITOR

CROSS REFERENCES:

Volvo/White 10504002 Tie Rod End
Volvo/White 1057823 Tie Rod End
Volvo/White 1505759 Tie Rod End
Volvo/White 1507823 Tie Rod End
Volvo/White 1698532 Tie Rod End
Volvo/White 1698846 Tie Rod End
Volvo/White 3090727 Tie Rod End
Volvo/White 3092472 Tie Rod End
Volvo/White 366758 Tie Rod End
Volvo/White 3884002 Tie Rod End
Volvo/White 3988965 Tie Rod End
Volvo/White 6884002 Tie Rod End
Volvo/White 6889478 Tie Rod End
Volvo/White 85114148 Tie Rod End
Volvo/White V1698846 Tie Rod End
