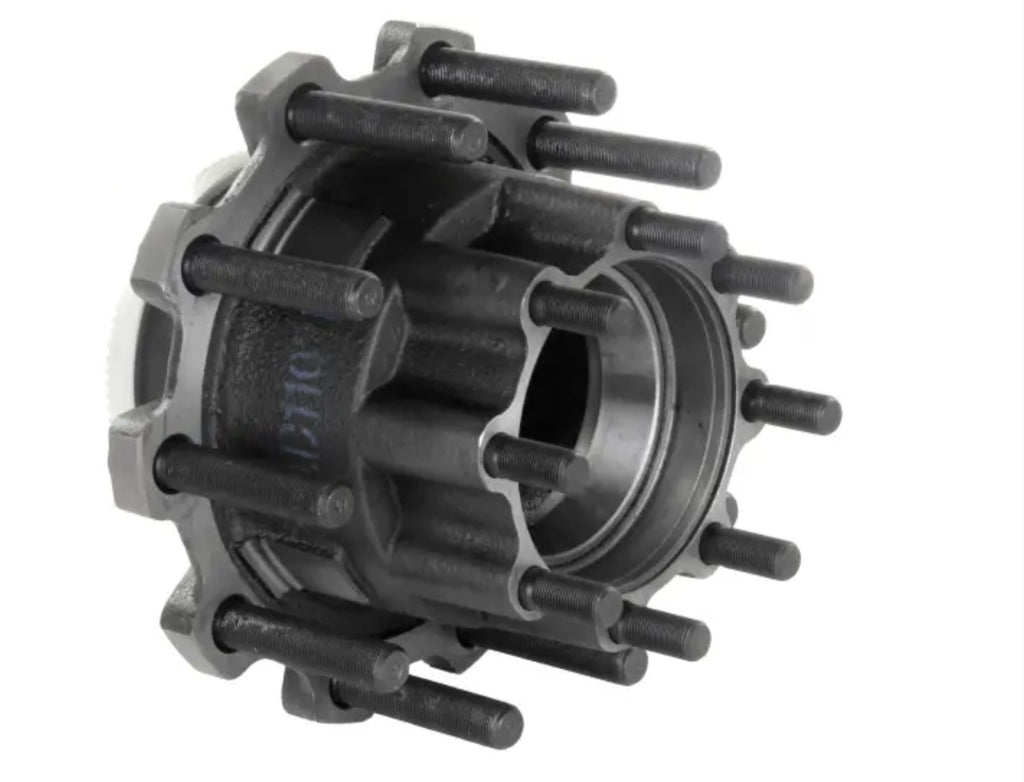

150.D1102.S1-rive Hub Assembly
150.D1102.S1- rive Hub Assembly
Specifications:
Hubs By: Drive Axle
Drum Mounting: Outboard
ABS: Yes
Body Type: Cast
Overall Height: 9.230"
Distance Between Cups: 4.310"
Bolt Circle Diameter: 11.250
Pilot: 8.780"
Bolt Holes: 10
Includes Wheel Studs: Yes
Hubcap Holes 8 @ 3/4-10
Hubcap Bolt Circle Dia.: 7.000"
CROSS REFERENCES:
265315T/ 265115T / 150.2651.S1
