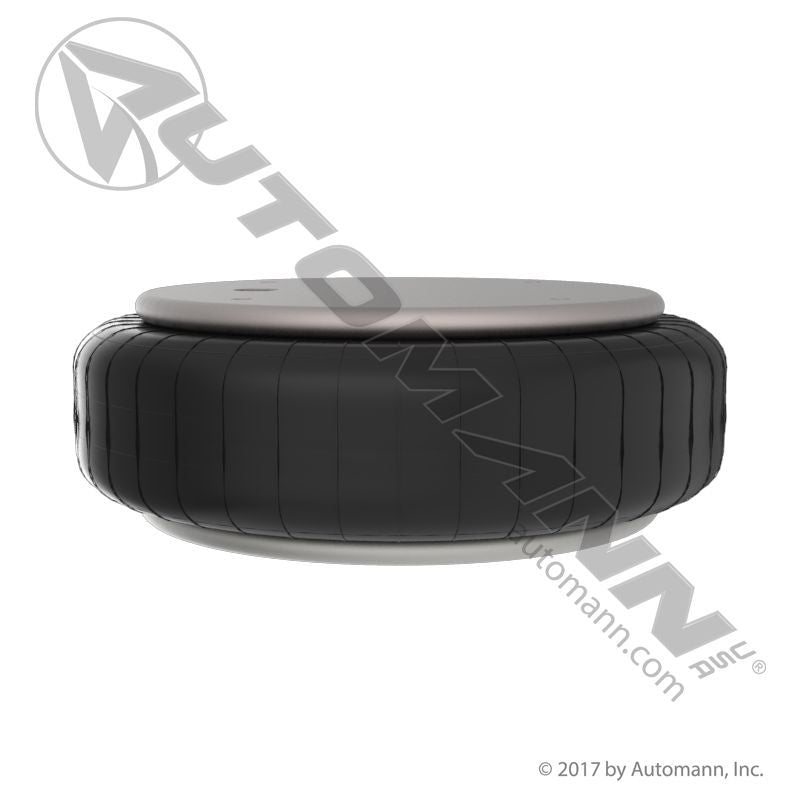

566.CT64527 - Continental Air Spring Single Convoluted

566.CT64527 - Continental Air Spring Single Convoluted

SPECIFICATIONS
Goodyear Bellows# : FS 530-14
Triangle Bellows# :7900
Load (Lbs) @80 PSI: 9900
Load (Lbs) @100 PSI: 120
Natural Freq. (CPM): 5.90
Top Plate Hole/Stud Qty: 5
Top Plate Dia. (A): 11.31
Top Plate C to C Dia. (B): 6.25
Bottom Plate Hole/Stud Qty: 4
Bottom Plate Dia. (C): 6.25
Bumper: YES
Min. Height: 4.10
Max. Height: 8.20
Max. Dia.: 15.90

CROSS REFERENCES
64527/ FS530-14516/ 7096/ W013587096
