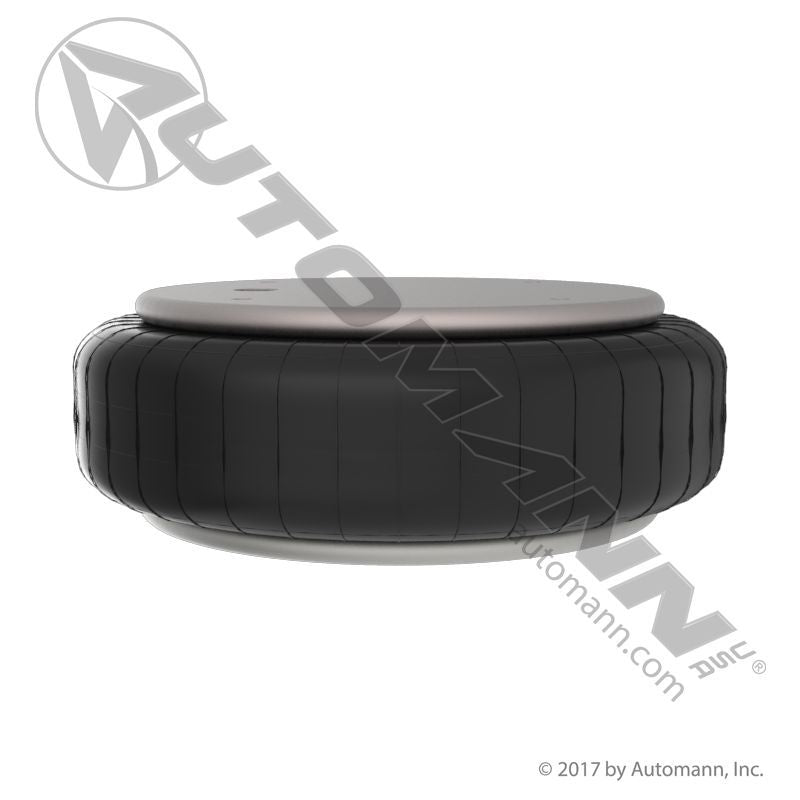

566.CT66091 - Continental Air Spring Single Convoluted

566.CT66091 - Continental Air Spring Single Convoluted

SPECIFICATIONS
Goodyear Bellows# : FS 330-11
Triangle Bellows# : 4800
Load (Lbs) @80 PSI: 6000
Load (Lbs) @100 PSI: 132
Natural Freq. (CPM): 5.10
Top Plate Hole/Stud Qty: 3
Top Plate Dia. (A): 9.00
Top Plate C to C Dia. (B): 6.20
Bottom Plate Hole/Stud Qty: 2
Bottom Plate Dia. (C): 6.20
Bumper: NO
Min. Height: 2.00
Max. Height: 6.80
Max. Dia.: 12.80

CROSS REFERENCES
64596/ FS330-11474/ 7008/ W013587008/ 1B12-313/ 1R12-313/ SC2010/ 90557226/ AS01491G
