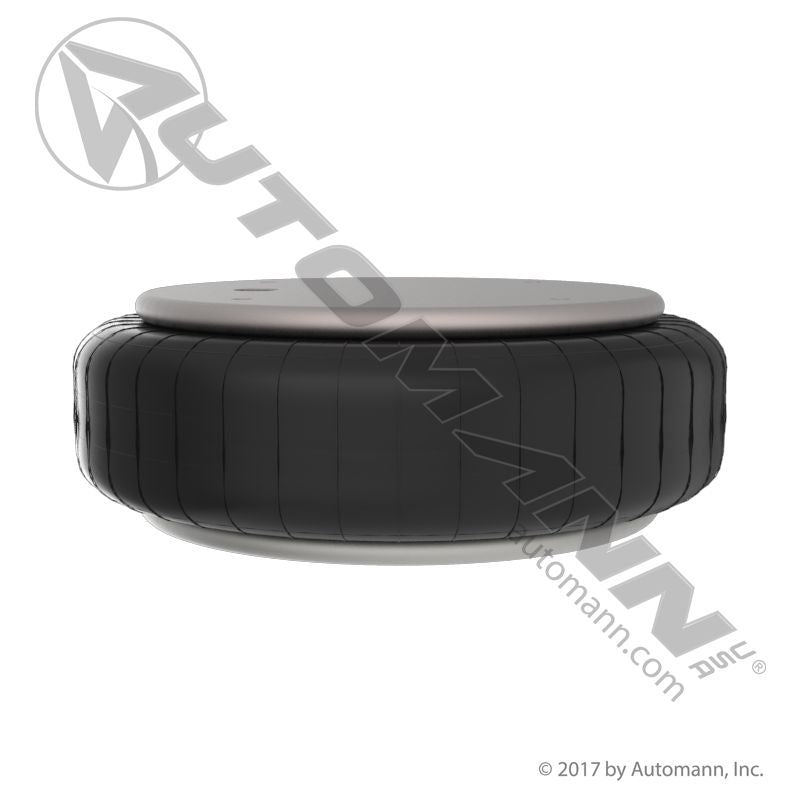

ABSP1B34A-7104 - Air Spring Single Convoluted

ABSP1B34A-7104 - Air Spring Single Convoluted

SPECIFICATIONS
Firestone Bellows# : 113
Goodyear Bellows# : 578-91-3-351
Contitech Bellows# : FS 530-14
Load (Lbs) @80 PSI: 7900
Load (Lbs) @100 PSI: 9900
Natural Freq. (CPM): 120
Design Height: 5.90
Top Plate Hole/Stud Qty: 5
Top Plate Dia. (A): 11.31
Top Plate C to C Dia. (B): 6.25
Bottom Plate Hole/Stud Qty: 4
Bottom Plate Dia. (C): 11.31
Bottom Plate C to C Dia. (D): 6.25
Bumper: YES
Min. Height: 2.40
Max. Height: 8.20
Max. Dia.: 15.90

CROSS REFERENCES
64524/FS530-14446/ 7104/ W013587104/ 1003587104C
