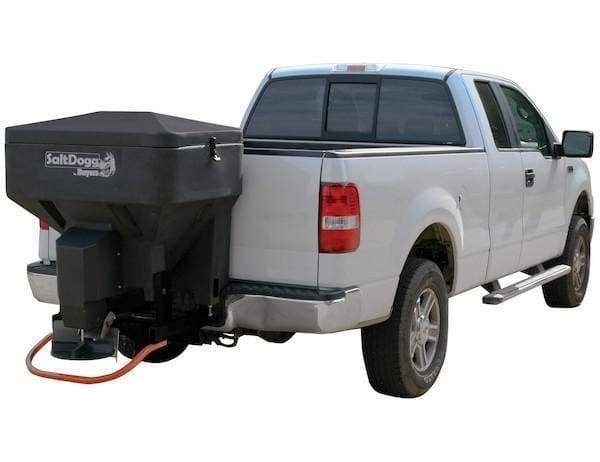

Buyers-SALTDOGG-TGS03-8 Cubic Foot Tailgate Spreader

SALTDOGG- TGS03 - 8 Cubic Foot Tailgate Spreader

Easily mounts to a 1/2 ton, 3/4 ton, or 1 ton truck.
Durable corrosion-proof hopper has an 8 cubic foot capacity. 12V DC-powered electric drive for quiet, low maintenance operation.
Uses bulk salt or 50/50 salt/sand mix (with optional vibrator).
Easy to use variable speed in-cab controls.
12 in. poly spinner can broadcast up to 30 ft.
Horizontal auger reduces material waste and provides better spread control.
Simple 2 in. hitch-mount design.
Carbon steel frame is powder-coated for optimum corrosion protection. Corrosion-proof and durable poly hopper comes in red, yellow and black. Made in the USA.

The SaltDogg TGS03 8 Cubic Foot Tailgate Spreader is ideal for commercial applications using bulk salt (or a 50/50 salt/sand mix with the optional vibrator). It features a horizontal auger with a stainless steel trough and is compatible with 1/2 ton, 3/4 ton, and 1 ton trucks.
The spreader has a low-profile, 8 cubic foot poly hopper available in black, red and yellow. The hopper's frameless, double-wall construction is durable and highly corrosion resistant. The spreader mounts to a 2 in. Class 4 hitch with patented horizontal and vertical adjustment.
Its 12 in. poly spinner can cast material from 3 to 30 ft. A 1/2 HP, 12V dual shaft gear motor is controlled by an included variable speed in-cab controller.


Product Common Use: Light Commercial Jobs, Residential Properties, Parking Lots, Driveways

SPECIFICATIONS:
Spinner Material: Polyurethane
Controller Type: Variable Speed
Number Of Motors: 1
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Sand: No
Works With Bulk Salt: Yes
Works With Salt / Sand Mix: Yes
Trough Material: 304 Stainless Steel
Hopper Length : 28.00 "
Hopper Material: Polyethylene
Frame Material: Carbon Steel
Frame Finish : Powder Coat
Hopper Color: Black
Drive Type: Electric
Capacity 8.00 ft³
Overall Height:45.00 "
Overall Length: 30.00 "
Overall Width (At Top) 38.00 "
Hopper Width: 38.00 "
Drive Motor Horse Power: .50 HP
Vibrator Included? No
Spinner Diameter: 12.00 "
Spread Range: 3 to 30 '
System Voltage:12 vdc
Receiver Hitch Size: 2 in., Class 4 w/Horizontal & Vertical Adjustment
Feed Mechanism: Horizontal Auger
Feed Mechanism Details: 3-3/4 in. Horizontal Auger

COPY AND PASTE IN YOUR WEB BROWSER THE LINK BELOW FOR THE INSTRUCTION MANUALS

• Instruction Manual TGS03: https://pimimages.buyersproducts.com/products/Documents/3019688_F.PDF
• Instruction Manual for Spreader Controller #3011864 (2017 and earlier):  https://pimimages.buyersproducts.com/products/Documents/3019468_C.pdf
• Instruction Manual for Spreader Controller #3011864 (2018+):  https://pimimages.buyersproducts.com/products/Documents/3011864_2018.pdf
