Buyers-SALTDOGG-TGS07-11 Cubic Foot Tailgate Spreader

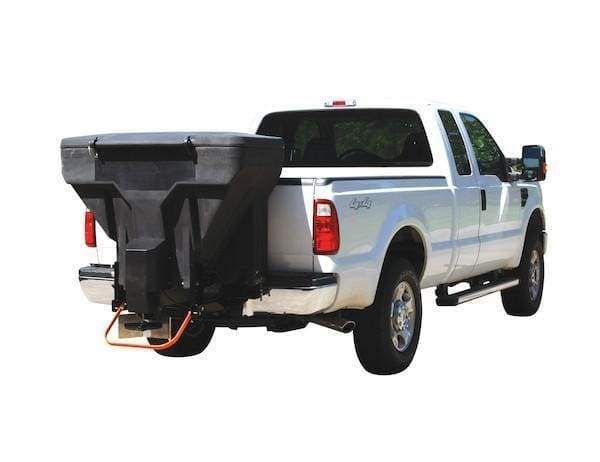

SALTDOGG-TGS07 - 11 Cubic Foot Tailgate Spreader
Easily mounts to a 3/4 ton, or 1 ton truck.
Durable corrosion-proof hopper has an 11 cubic foot capacity and comes in black, red, and yellow.
12V DC-powered electric drive for quiet, low maintenance operation.
Uses bulk salt or 50/50 salt/sand mix.
Easy to use variable speed in-cab controls.
12 in. poly spinner can broadcast up to 30 ft.
Horizontal auger reduces material waste and provides better spread control.
Includes concealed vibrator to keep material moving.
Simple 2 in. hitch-mount design.
Dual action lid allows loading from the ground or the truck bed..
Made in the USA.
The SaltDogg TGS07 11 Cubic Foot Tailgate Spreader is a large volume commercial tailgate spreader. It features a horizontal auger, stainless steel trough, and an included concealed vibrator that allows it to spread bulk salt or a 50/50 sand/salt mix from 3/4 ton and 1 ton trucks.
The spreader has a low-profile, 11 cubic foot hopper available in black, red and yellow. The hopper's frameless, double-wall poly construction is durable and highly corrosion resistant. The spreader mounts to a 2 in. Class 4 hitch with patented horizontal and vertical adjustment.
Its 12 in. poly spinner can cast material up to 30 ft. A 1/2 HP, 12V dual shaft gear motor is controlled by an included variable speed in-cab controller.
Product Common Use: Parking Lots, Driveways, Residential Areas, Commercial Properties
SPECIFICATIONS:
Spinner Material: Polyurethane
Controller Type: Variable Speed
Number Of Motors: 1
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Sand: No
Works With Bulk Salt: Yes
Works With Salt / Sand Mix: Yes
Trough Material: 304 Stainless Steel
Hopper Length : 26.00 "
Hopper Material: Polyethylene
Frame Material: 304 Stainless Steel
Frame Finish : Powder Coat
Hopper Color: Black
Drive Type: Electric
Capacity 11.00 ft³
Overall Height: 46.00 "
Overall Length: 31.50 "
Overall Width (At Top) 53.00 "
Hopper Width: 51.00 "
Top Screen Included: Yes
Drive Motor Horse Power: .50 HP
Vibrator Included? Yes
Vibrator Force: 200 lb
Spinner Diameter: 12.00 "
Spread Range: 3 to 30 '
System Voltage:12 vdc
Receiver Hitch Size: 2 in., Class 4 w/Horizontal & Vertical Adjustment
Feed Mechanism: Horizontal Auger
Feed Mechanism Details: 3-3/4 in. Horizontal Auger
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
Installation Instructions for TGS07 Salt Spreaders Manufactured 2011+:
https://pimimages.buyersproducts.com/products/Documents/3020208_D.pdf
Instruction Manual for Spreader Controller #3011864 (2017 and earlier):
https://pimimages.buyersproducts.com/products/Documents/3019468_C.pdf
Installation Instructions for TGS07 Salt Spreaders Manufactured Prior to 2011:
https://pimimages.buyersproducts.com/products/Documents/3020208_c.pdf
Instruction Manual for Spreader Controller #3011864 (2018+):
https://pimimages.buyersproducts.com/products/Documents/3011864_2018.pdf
