Buyers-SALTDOGG-9035100-Electric Replacement Tailgate Spreader Center Discharge
SALTDOGG-9035100 - Electric Replacement Tailgate Spreader Center Discharge
Fits in place of tailgate on a 1 ton/super duty dump body.
Ideal for dump bodies with low ground clearance.
High quality 304 stainless steel construction.
Handles bulk salt or a 50/50 salt/sand mix.
In-cab controls with independent variable speeds for the auger and spinner.
18 in. spinner casts up to 25 ft.
6 in. auger with 3/8 in. dual flighting keeps material moving.
Easy to mount and remove with built-in lift point.
Available with center or left side discharge..
Made in the USA.

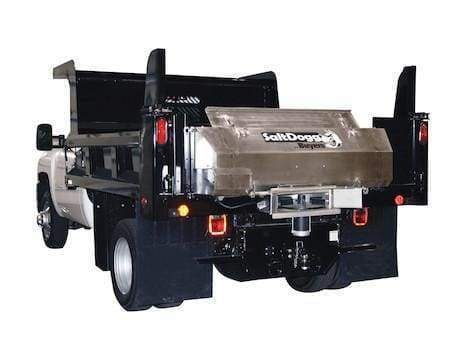

Buyers Products SaltDogg Electric Replacement Tailgate Spreader is designed to install in place of the tailgate of 1 ton dump bodies. It is easy to mount and dismount and is ideal for dump bodies with low ground clearance. The spreader can handle bulk salt or a 50/50 salt/sand mix.spreader is easy to mount and remove. It maintains high clearance, making it ideal for spreading bulk salt or a 50/50 salt/sand mix with a narrow-bodied dump truck.
The spreader is constructed of corrosion resistant 304 stainless steel. The 5 in. dual flight auger and breaker bar with mixing tines keep the material moving. It's powered by a 3/4 HP motor.
An independent 1/2 HP motor powers the integrated, hinged 14 in. poly spinner. The spinner assembly maintains high clearance and spreads material up to 20 ft.
The spreader is constructed of corrosion resistant 304 stainless steel for ultimate durability and corrosion resistance. It features an anti-flow plate as well as a lifting loop for ease of installation. The spreader is equipped with a 6 in. dual flight auger with 3/8 in. flighting that keeps material moving and screens on either end. It's powered by a 3/4 HP motor.
A second 1/2 HP motor powers the 18 in. poly spinner and can spread material up to 25 ft. The spreader is controlled by a heavy duty in-cab controller with independent variable speeds for the conveyor and spinner.
SPECIFICATIONS
Chute Primary Material: 304 Stainless Steel
Chute Standard Adjustable Extended: Adjustable Height
Controller Type: High Speed Variable Speed
Drive Type: Electric
Hopper Length 23.80"
Hopper Material: 304 Stainless Steel
Number of Motors: 2
Spinner Material : Polyurethane
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Salt: Yes
Works With Bulk Sand: No
Works With Salt / Sand Mix: Yes
Overall Height: 36.00"
Overall Length: 23.80"
Overall Width ( at Top ) 84.27"
Top Screen: Yes
Vibrator Included?: No
Spinner Diameter 18.00"
Spreading Width Range: 4-25"
System Voltage: 12 vdc
Feed Mechanism : Horizontal Auger
Feed Mechanism 2 : 6 in. Auger with 3/8 in. Flighting
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
Installation Instructions for SaltDogg® Electric Replacement Tailgate Spreaders:
https://pimimages.buyersproducts.com/products/Documents/3032201_B.pdf
Controller Manual:
https://pimimages.buyersproducts.com/products/Documents/3026671_A.pdf
Error Codes for 3016934 Spreader Controller:
https://pimimages.buyersproducts.com/products/Documents/3016934%20Error%20Codes.pdf
