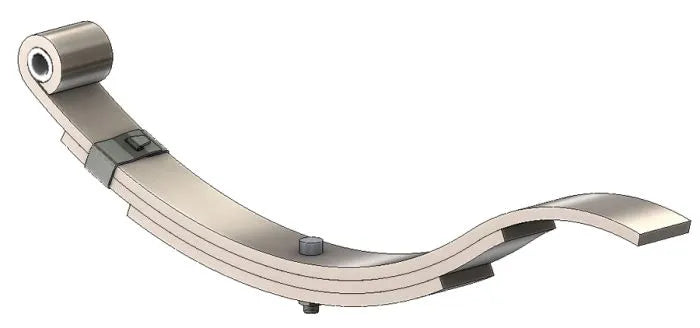

UNA-026- Utility Trailer Leaf Spring
UNA-026- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 3
Length Axis 1: 12.97"
Length Axis 2: 9.45"
Free Arch Length: 3.25"
Load Rate: 1000 lb
Bushings Included: YES
Grading Configuration: 3/323
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-225
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Radius Slipper
Free Length: 20.75"
CROSS REFERENCE: US-3059, US3059, URB20753, UNA026, LR20753J
