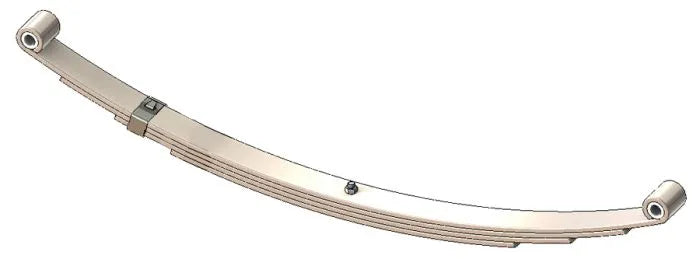

UNA-030- Utility Trailer Leaf Spring
UNA-030- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 4
Length Axis 1: 10.75"
Length Axis 2: 10.75"
Free Arch Length: 3.25"
Load Rate: 1290 lb
Bushings Included: YES
Grading Configuration:4/259
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-226
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5"
End 1 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 19.92"
CROSS REFERENCE: UNA030
