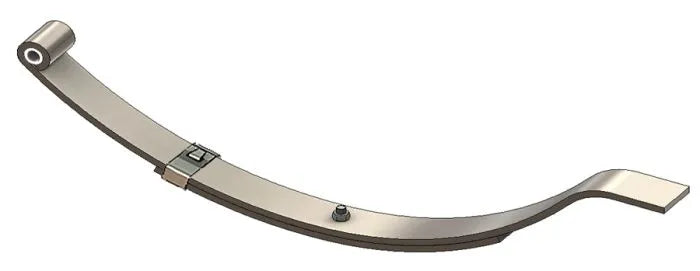

UNA-037- Utility Trailer Leaf Spring
UNA-037- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 2
Length Axis 1: 17.75"
Length Axis 2: 15"
Free Arch Length: 4.88"
Load Rate: 705 lb
Bushings Included: YES
Grading Configuration: 2/323
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-225
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"
End 1 Attachment Inside Diameter: 0.875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Flat End Slipper
Free Length: 30"
CROSS REFERENCE: UNA-184, UNA184, UNA037
