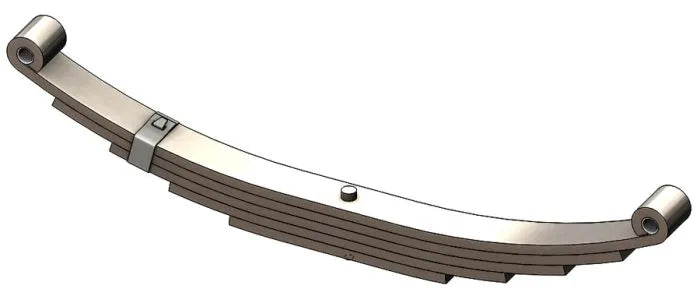

UNA-100- Utility Trailer Leaf Spring

UNA-100- Utility Trailer Leaf Spring

DESCRIPTION
Leaf Width: 1.75"
Leaves: 5
Length Axis 1: 13.34"
Length Axis 2: 13.34"
Free Arch Length: 2.83"
Load Rate: 3000 lb
Bushings Included: YES
Grading Configuration:5/401
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"
End 2 Bushing: PE-227
End 2 Bushing Material: Nylon
End 2 Bushing Inside Diameter: 0.5625 in
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 25.38"

CROSS REFERENCE: 072-073-00, 72-073-00, 07207300, 7207300, 72-73, 7273, UNA100
