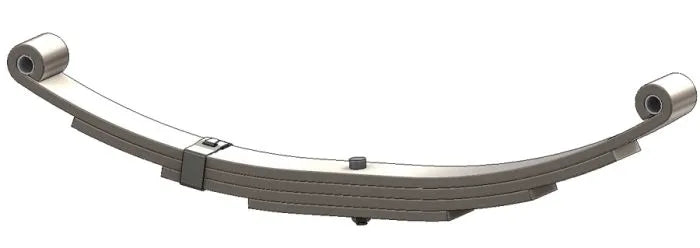

UNA-123- Utility Trailer Leaf Spring
UNA-123- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 4
Length Axis 1: 14.07"
Length Axis 2: 14.07"
Free Arch Length: 4.12"
Load Rate: 750 lb
Bushings Included: YES
Grading Configuration: 4/237
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.6875"
End 2 Attachment Type: Up Turned Eye
End 2 Bushing: PE-227
End 2 Bushing Material: Nylon
End 2 Bushing Inside Diameter: 0.5625 in
End 2 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 26"
CROSS REFERENCE: 26-750, 26750, UNA-239, UNA239, UNA123
