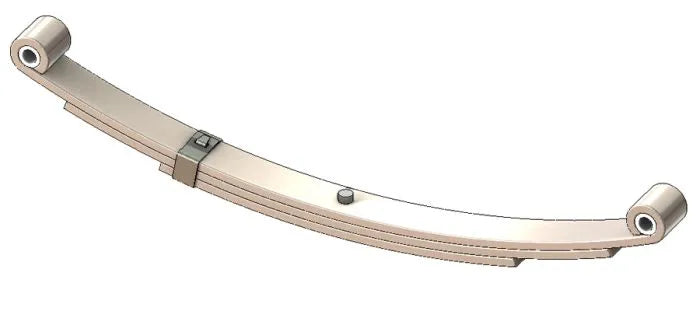

UNA-144- Utility Trailer Leaf Spring
UNA-144- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 3
Length Axis 1: 14.21"
Length Axis 2: 14.21"
Free Arch Length: 3.5"
Load Rate: 750 lb
Bushings Included: YES
Grading Configuration: 1/291 2/262
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.6875""
End 2 Attachment Type: Up Turned Eye
End 2 Bushing: PE-227
End 2 Bushing Material: Nylon
End 2 Bushing Inside Diameter: 0.5625 in
End 2 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 27"
CROSS REFERENCE: US-1006, US1006, UDB27003, 33611, 15327, 33611 15327, 3361115327, UNA144
