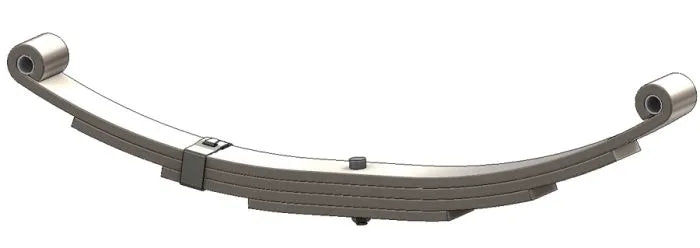

UNA-190- Utility Trailer Leaf Spring
UNA-190- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 4
Length Axis 1: 14.88"
Length Axis 2: 14.88"
Free Arch Length: 4.25"
Load Rate: 925 lb
Bushings Included: YES
Grading Configuration: 4/259
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.6875""
End 2 Attachment Type: Up Turned Eye
End 2 Bushing: PE-227
End 2 Bushing Material: Nylon
End 2 Bushing Inside Diameter: 0.5625 in
End 2 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 28"
CROSS REFERENCE: UNA190
