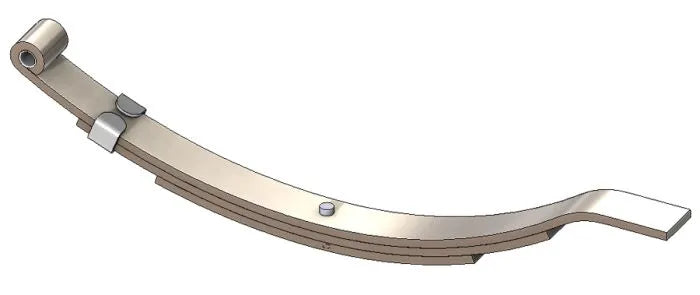

UNA-205- Utility Trailer Leaf Spring
UNA-205- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 3
Length Axis 1: 14.5"
Length Axis 2: 12.1"
Free Arch Length: 3.5"
Load Rate: 1400 lb
Bushings Included: YES
Grading Configuration: 3/323
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type:Flat End Slipper
Free Length: 25"
CROSS REFERENCE: BT-25-15, BT2515, UNA205, TS723-3, TS7233
