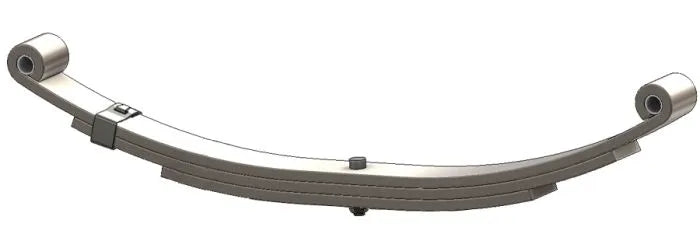

UNA-217- Utility Trailer Leaf Spring
UNA-217- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 3
Length Axis 1: 13.13"
Length Axis 2: 13.13"
Free Arch Length: 3"
Load Rate: 1500 lb
Bushings Included: YES
Grading Configuration: 2/360 1/323
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.6875"
End 2 Attachment Type: Up Turned Eye
End 2 Bushing: PE-227
End 2 Bushing Material: Nylon
End 2 Bushing Inside Diameter: 0.5625 in
End 2 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 26"
CROSS REFERENCE: US-1035, US1035, UDB25253HD, 72-23, 7223, 1761, UNA-108, UNA108, UNA217, 072-023-00, 72-023-00, 07202300, 7202300
