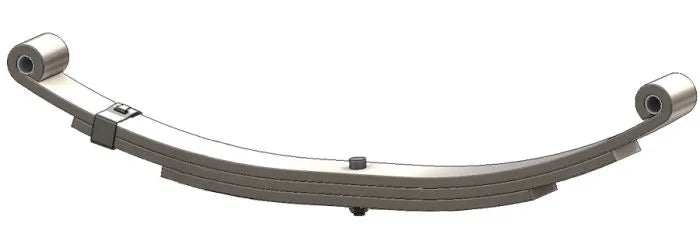

UNA-224- Utility Trailer Leaf Spring
UNA-224- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 3
Length Axis 1: 15.87"
Length Axis 2: 15.87"
Free Arch Length: 4.38"
Load Rate: 1250 lb
Bushings Included: YES
Grading Configuration: 3/360
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.6875"
End 2 Attachment Type: Up Turned Eye
End 2 Bushing: PE-227
End 2 Bushing Material: Nylon
End 2 Bushing Inside Diameter: 0.5625 in
End 2 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Double Eye
Free Length: 29.75"
CROSS REFERENCE: UDB30003, 72-34, 7234, DE-3L, DE3L, 7234 DE3L, 7234DE3L, UNA-118, UNA118, UNA-036, UNA036, UNA224
