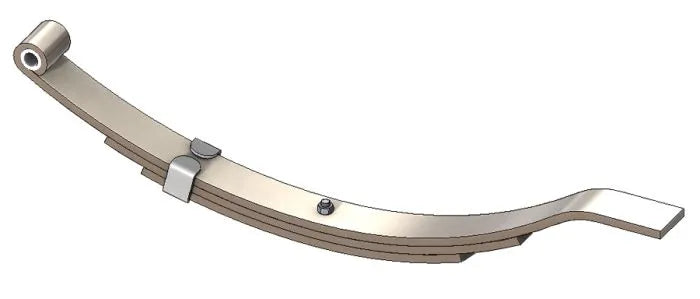

UNA-267- Utility Trailer Leaf Spring
UNA-267- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 3
Length Axis 1: 14.25"
Length Axis 2: 12.2"
Free Arch Length: 4"
Load Rate: 850 lb
Bushings Included: YES
Grading Configuration: 3/262
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-227
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5625"End 1 Attachment Inside Diameter: 0.875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type:Flat End Slipper
Free Length: 24.5"
CROSS REFERENCE: UNA020, UNA178, UNA267
